Foil Drive Assist MAX

The Foil Drive Assist MAX is the all-rounder electric foil assist system, engineered for the perfect balance between thrust, runtime and versatility across every foiling discipline. Part of the Foil Drive range, it bolts onto your existing hydrofoil mast to add power on demand — for longer surf sessions, reliable flatwater takeoffs, and easier upwind and downwind riding.

Providing an optimised blend of power, endurance and weight, the Assist MAX unlocks unlimited progression regardless of conditions. You choose your own battery size and motor to match how and where you ride.

Who It's For

• Discipline: Surf, wing, downwind, wake and flatwater foiling
• Level: Complete beginners wanting easier takeoffs through to advanced riders extending range and session length
• Best for: Riders who want one adaptable electric assist system rather than a fixed-spec eFoil

Key Features

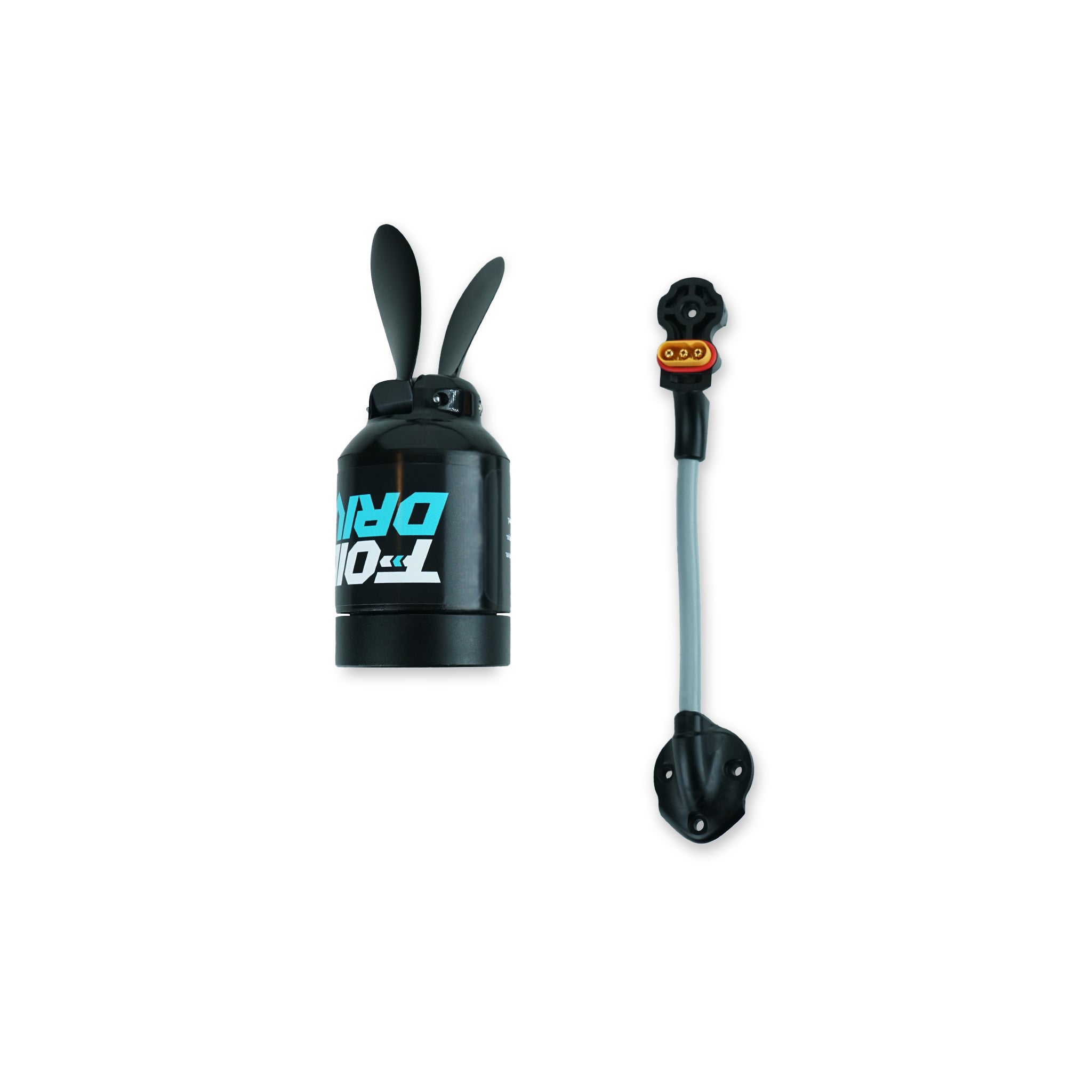

• Choice of motor and battery – select High Power v2 or Standard v2 motor, paired with MAX High Power, MAX Sport High Power 396, MAX Sport or MAX Travel battery
• Up to 29kg max thrust – a thrust-to-weight ratio of up to 5.7 N/kg for genuine assist power, not a token boost
• IP68 water rating – built for repeated saltwater immersion and reliable long-term use

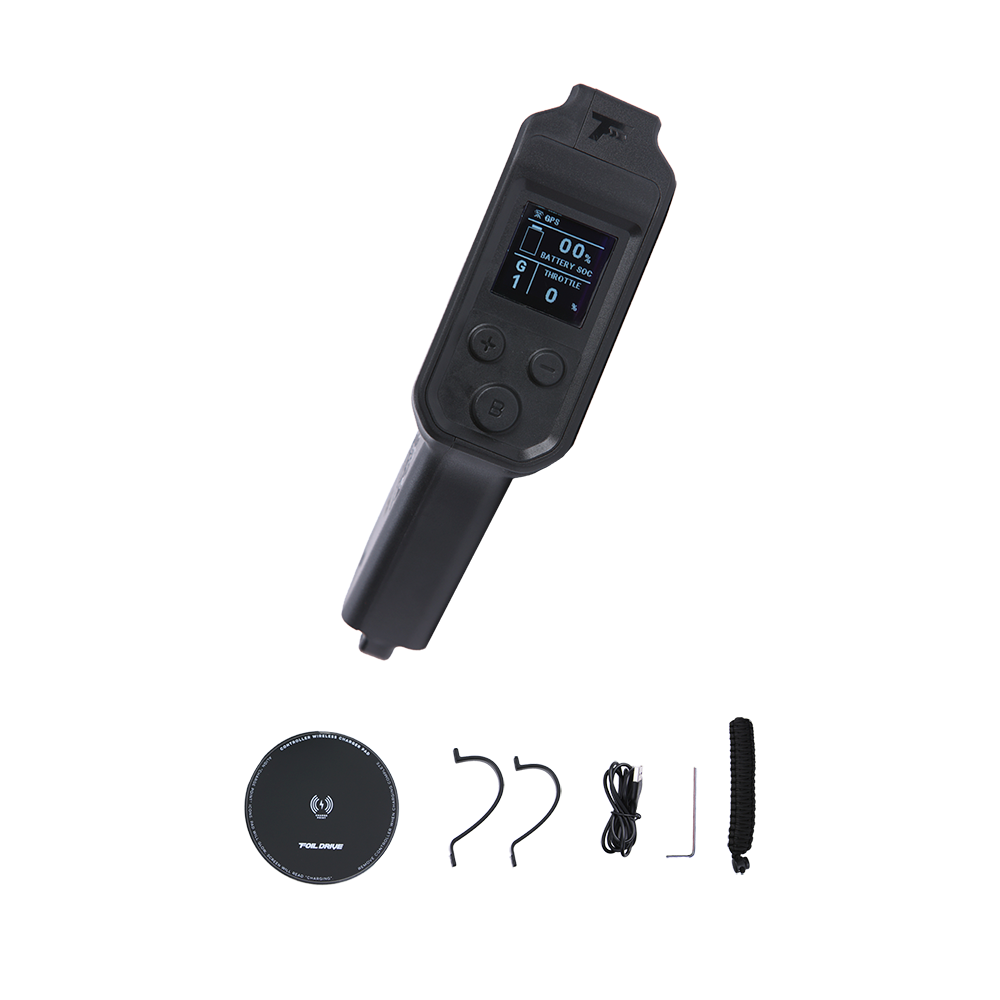

• V3 Wireless Throttle Controller – with charging pad, included as standard
• Minimum install weight of 4.8kg – with the MAX Sport battery, keeping the system light on your foil setup

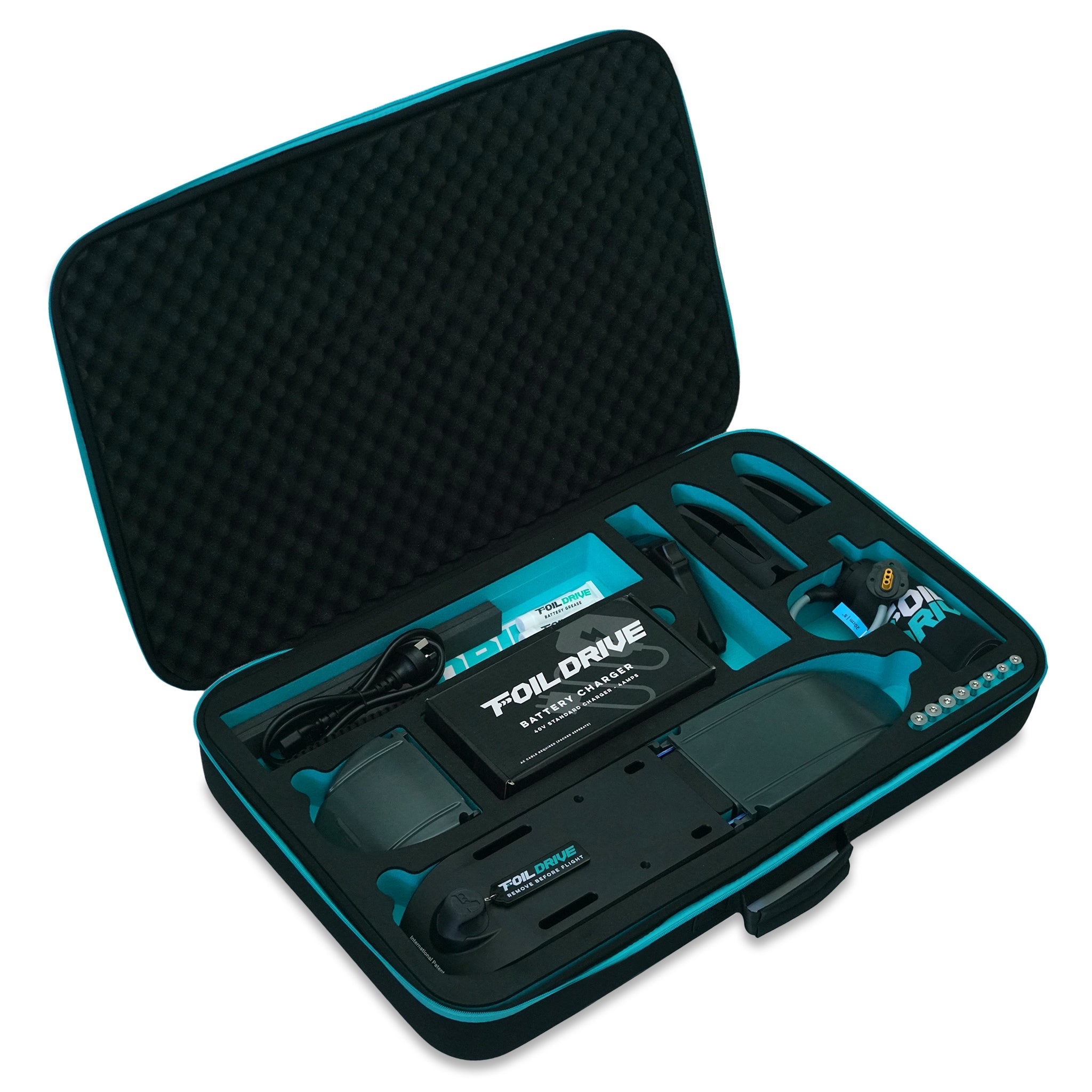

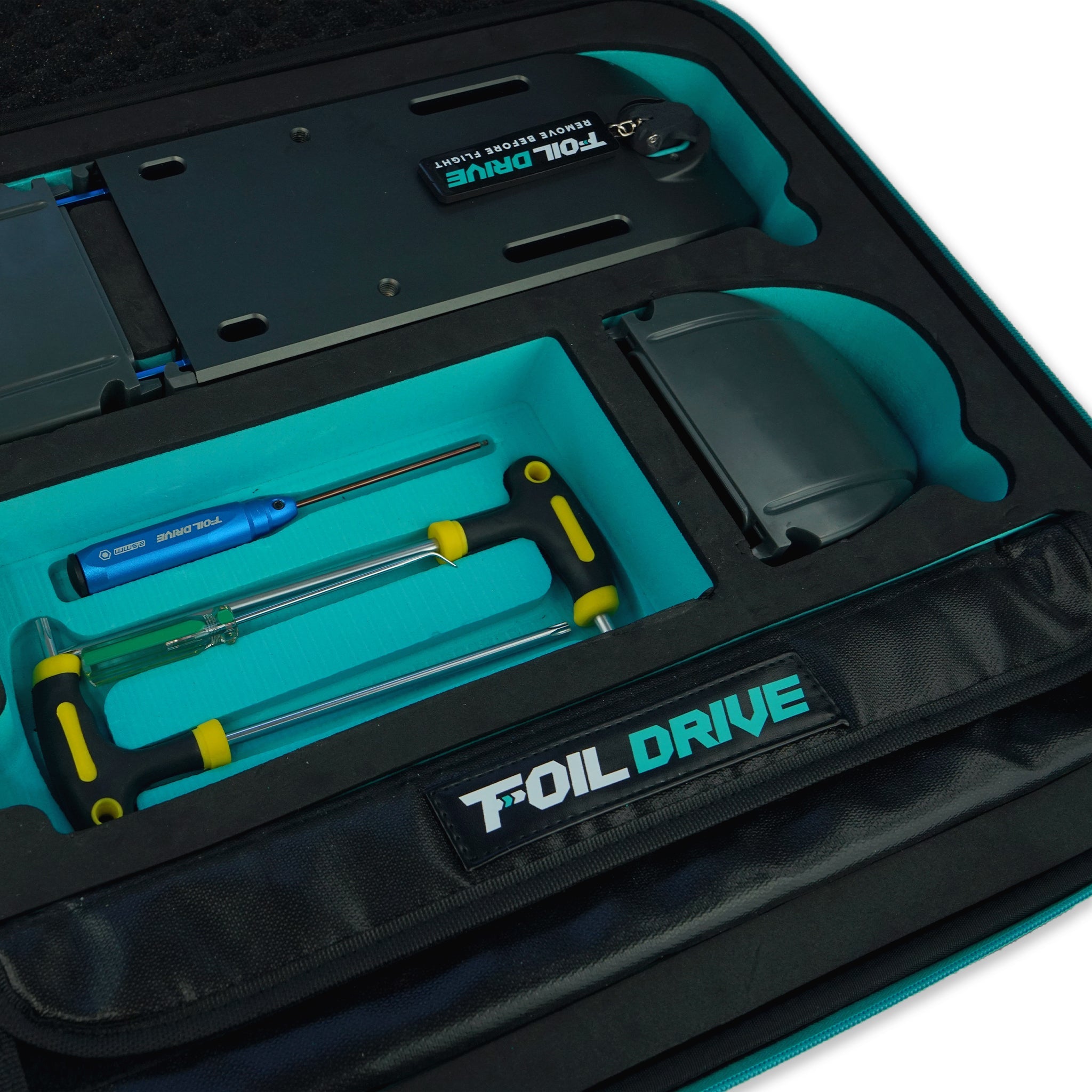

• Complete kit – Foil Drive Gen2 carry case, multiple nose cones and motor pods, full hardware kit, tools and spares

Real-World Feel

The Assist MAX genuinely changes what's rideable — flatwater takeoffs that would otherwise need a boat pull or a lucky gust become reliable, upwind and downwind legs stop being a grind, and surf sessions run longer because you're not burning energy paddling into position. Peak power of 1854W (2.5hp) and sustained power of 1455W (1.9hp) give it real muscle across disciplines, while the modular battery and motor choice means you can tune the system towards runtime or towards raw thrust depending on your priorities.

Setup / Fit

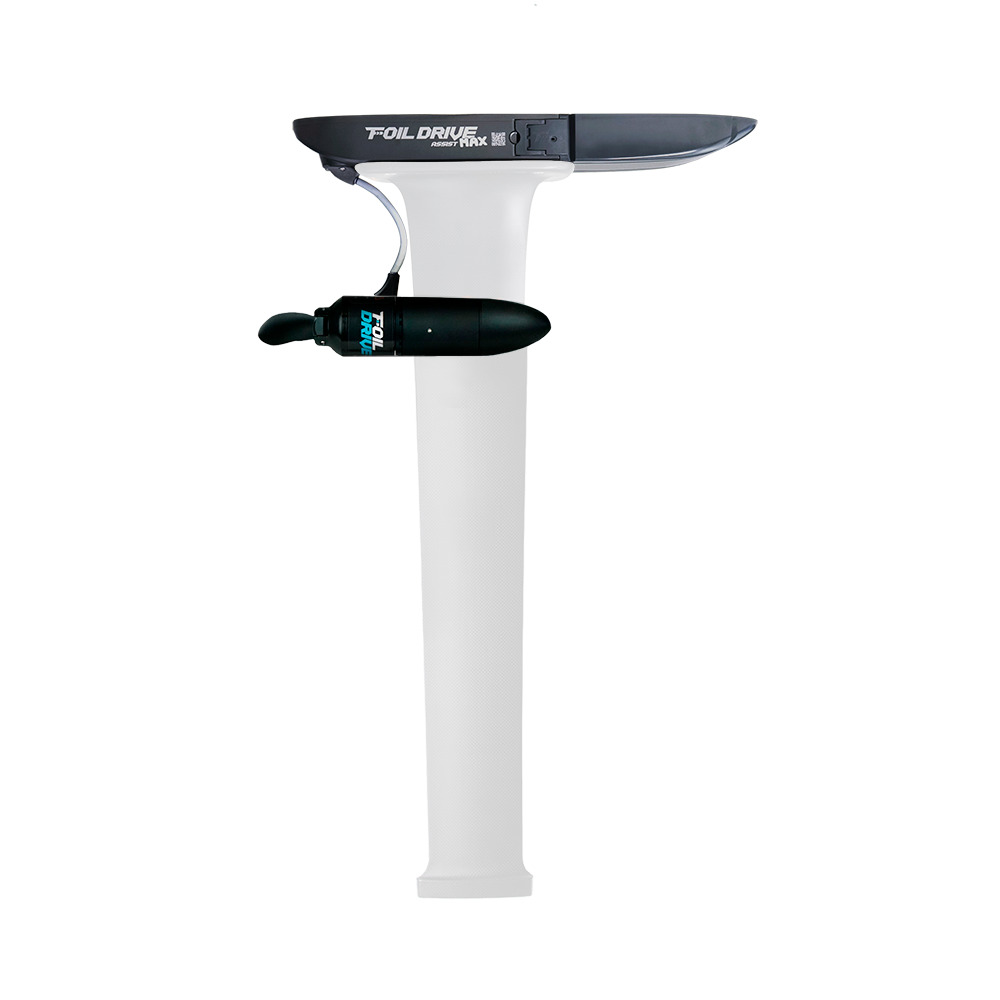

Choose your battery (MAX High Power, MAX Sport High Power 396, MAX Sport or MAX Travel) and motor (High Power v2 or Standard v2) to match your priorities — bigger batteries add runtime and weight, the High Power motor adds thrust. The unit fits to your existing mast using the included hardware kit, mast cable guides and foam inserts.

Materials

• System voltage: 40V nominal
• Battery capacity: 332–594Wh depending on battery choice
• Max thrust: 29kg (63.9lbs)
• Thrust-to-weight ratio: up to 5.7 N/kg
• Minimum install weight: 4.8kg (with MAX Sport)
• Peak power: 1854W (2.5hp); sustained power: 1455W (1.9hp)

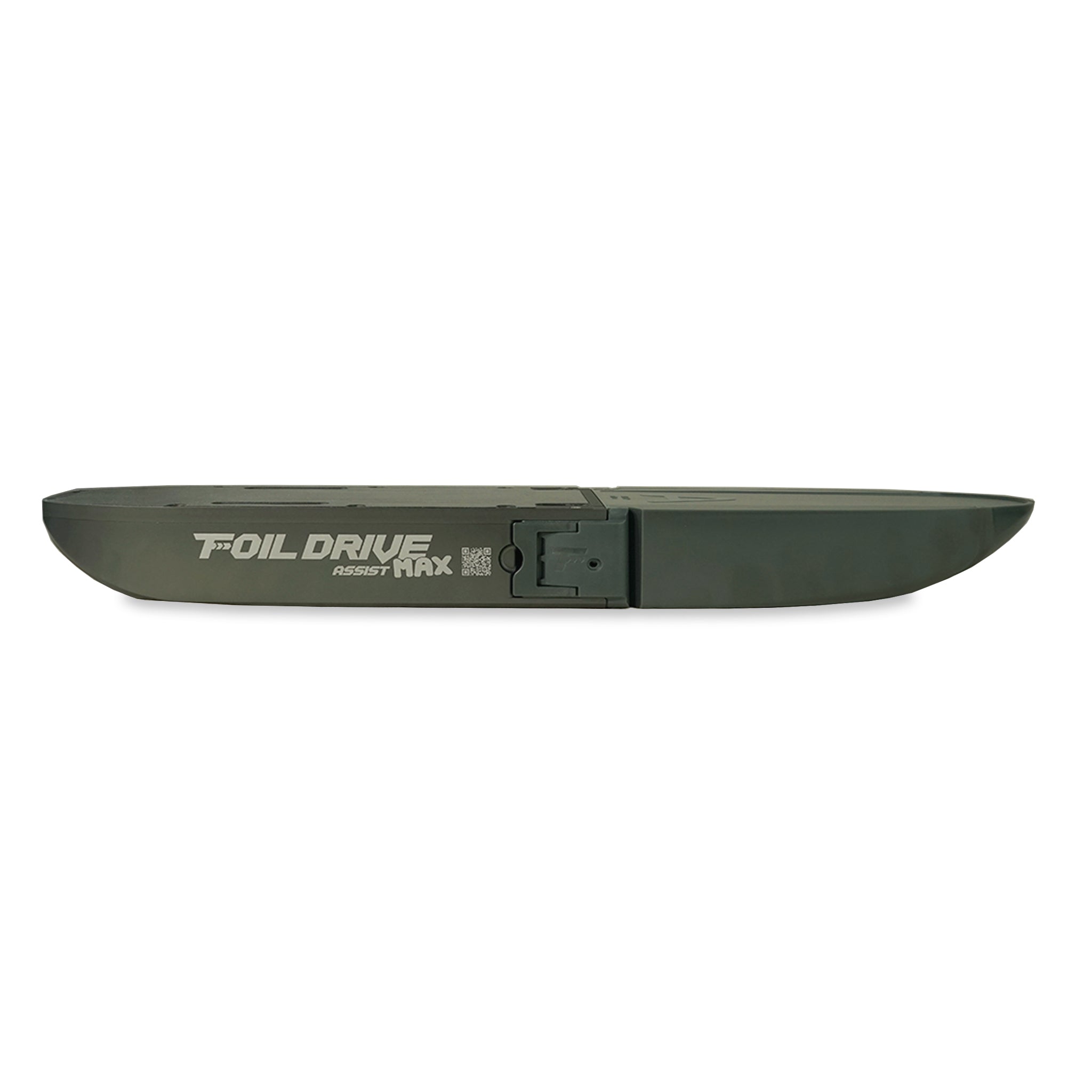

• Unit dimensions: L525 × W125 × H50mm
• Water rating: IP68

Pairs Well With

The Assist MAX pairs with Foil Drive's Removable v2 Motor Cable in your preferred length and Rubber Mast Cable Guides for a clean, streamlined install on your mast.

Why We Stock It

Not every rider wants to commit to a fixed-spec eFoil, and Foil Drive's modular approach — choose your battery, choose your motor — means the Assist MAX can be tuned to what you actually ride rather than a one-size-fits-all setup. We stock it because it's a genuinely adaptable system that grows with a rider's progression across disciplines.

FAQs

What is the Foil Drive Assist MAX?

It's Foil Drive's all-rounder electric foil assist system, bolting onto your existing mast to add power for surf, wing, downwind, wake and flatwater foiling, with a choice of battery and motor.

What's the difference between the battery options?

The MAX High Power and MAX Sport High Power 396 batteries prioritise power and capacity, while MAX Sport and MAX Travel prioritise lighter weight and portability — capacity ranges from 332Wh to 594Wh depending on which you choose.

How much thrust does the Assist MAX produce?

Up to 29kg (63.9lbs) of max thrust, with a thrust-to-weight ratio of up to 5.7 N/kg depending on your battery and motor selection.

Is the Assist MAX suitable for beginners?

Yes, it's built to suit complete beginners wanting easier, more reliable takeoffs through to advanced riders extending their range and session length.

What's included with the Assist MAX?

Your choice of motor and battery, a V3 Wireless Throttle Controller with charging pad, 40V charger, Foil Drive Gen2 carry case, nose cones and motor pods, full hardware kit, tools and spare parts.
