Description

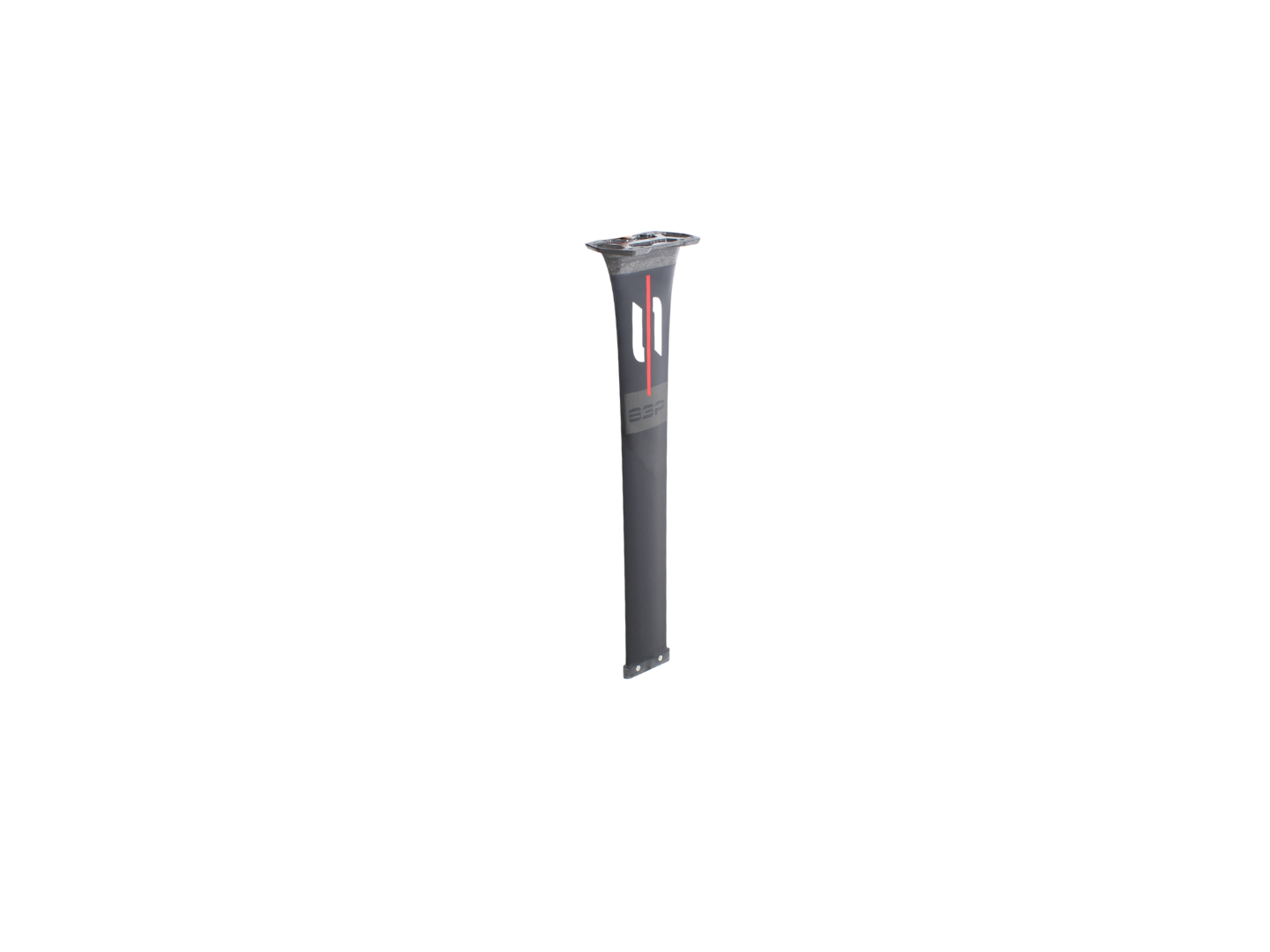

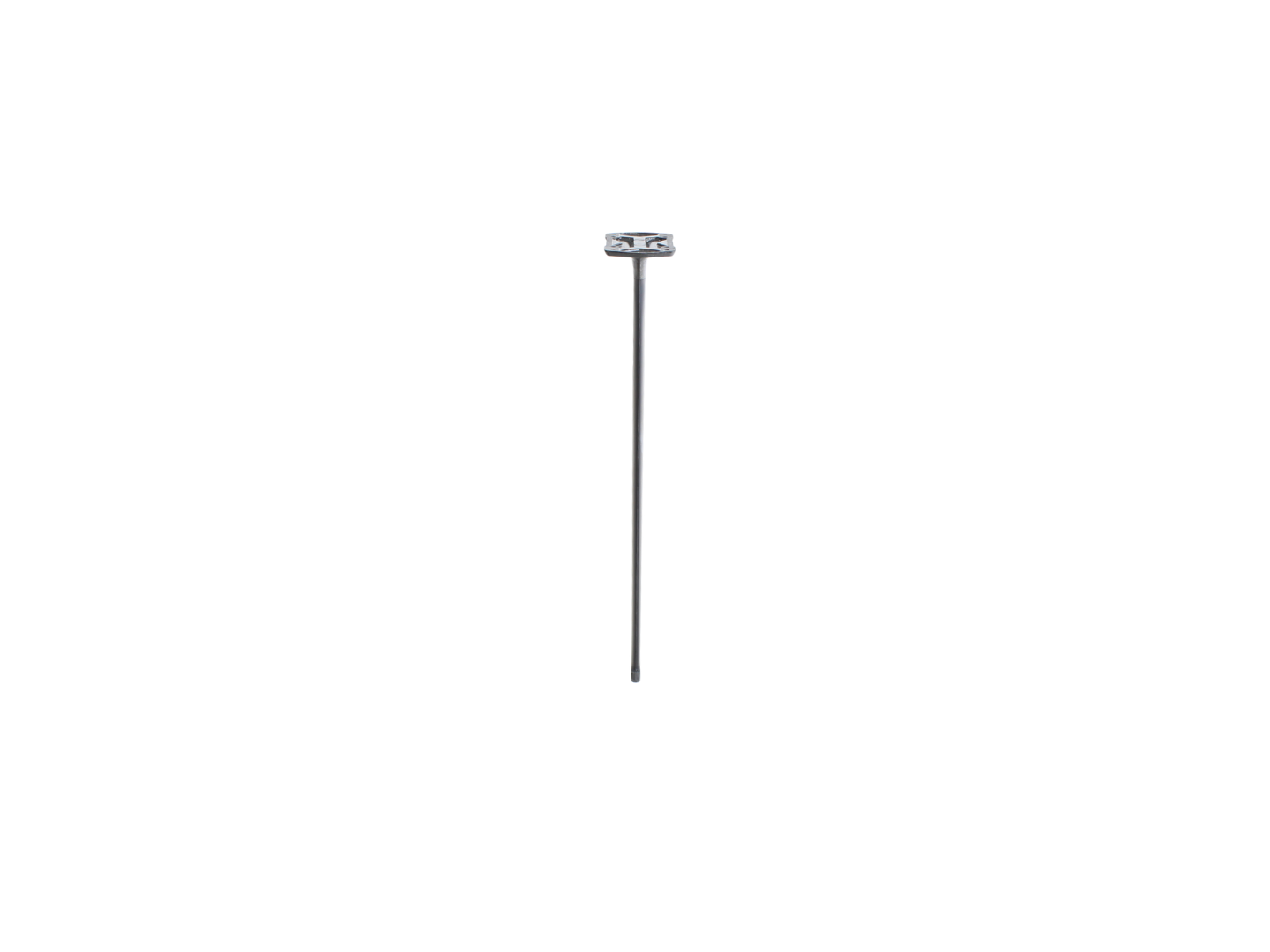

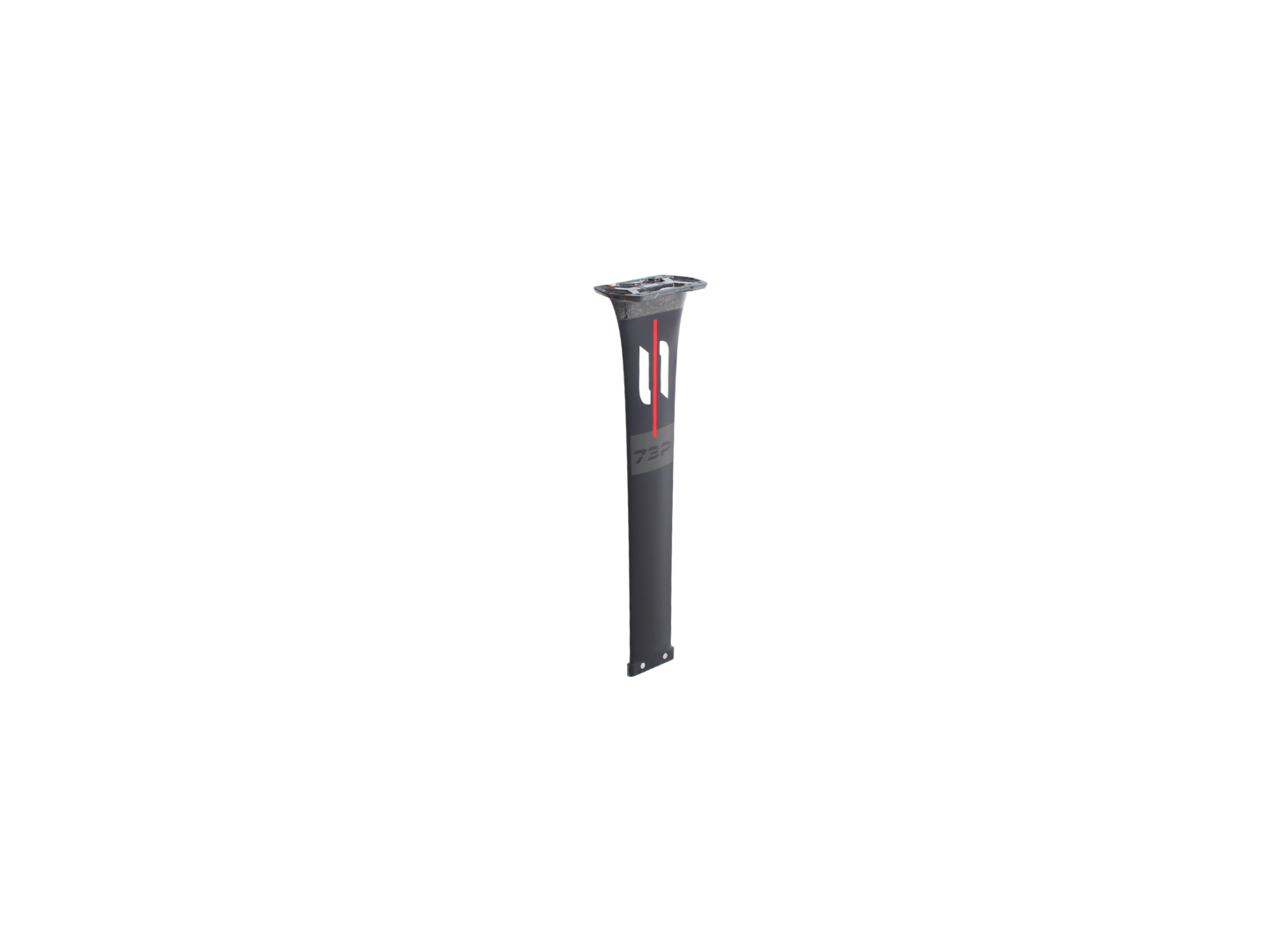

The Sabfoil Kraken Pump Integrated Mast is the thick-profile P version of the Kraken, built with the new Integrated System in 73 and 83cm. An advanced carbon lamination process forms the mast and plate as one continuous structure instead of bolting them together, dropping weight while adding stiffness and responsiveness at the highest-load point of the foil.
The P profile is the key difference: substantially thicker than the standard Kraken (up to 22.1mm against 18.4mm) for maximum stiffness under the hard, repeated loading of pumping. It gives up some top speed in exchange, which is exactly the right trade for dock starts, flat-water pumping and SUP foiling. Part of Sabfoil's foil mast range.
Who It's For
- Discipline: Pump foiling, dock starts, SUP, surf and wing foiling
- Level: Improver to advanced riders working on pumping and flat-water riding
- Best for: Riders who load the mast hard and repeatedly, and want zero flex loss between pump strokes
Key Features
- Integrated System – mast and plate laminated as one continuous carbon structure, removing the flex and play of a bolted plate joint
- Thick P pumping profile – 22.1mm (73P) and 20mm (83P) at the head for maximum stiffness under repeated loading
- Full carbon with core – robust construction built to take sustained pumping loads
- Light – the 73P comes in around 1,420g
- R8 mast-fuselage connection – pairs with the compatible Sabfoil R8 fuselage range
Real-World Feel
Pumping punishes a flexible mast — every bit of flex is energy that goes into bending carbon instead of driving the foil forward. The P profile addresses that directly, and the Integrated build takes out the last soft spot by removing the bolted plate joint. The result is a noticeably more efficient pump: less input lost, more strokes before you run out of legs. The trade-off is honest — the thicker section carries more drag, so top-end speed isn't its strength. If you mostly ride fast and powered, the standard Kraken Integrated is the better pick.
Setup / Fit
The 73P is the more manageable choice for dock starts, shallow water and prone/surf pumping. The 83P gives more clearance for choppier water, SUP and wing use where you want depth under the board. Because the plate is laminated in, this commits you to one board-mounting standard — riders who switch between plate and Tuttle should stay on the modular Kraken P.
Materials
- Construction: full carbon with core
- System: Sabfoil Integrated System, one-piece laminated mast and plate
- Connection: R8 mast-fuselage
- Lengths: 73 and 83cm, thick P pumping profile
Size Chart
| Length | Height | Chord (A/B/C) | Thickness (A/B/C) | Weight | Price |
|---|---|---|---|---|---|
| 73P | 730mm | 137.8 / 116.8 / 110.8mm | 22.1 / 20.1 / 18.0mm | approx. 1,420g | £819 |
| 83P | 830mm | 137.8 / 113.8 / 110.8mm | 20.0 / 19.6 / 18.0mm | – | £829 |
Pairs Well With
You'll need a compatible R8 fuselage plus a front wing and stabiliser to complete the foil. High-aspect pump wings suit this mast best, and a mast cover is worth adding for transport.
Why We Stock It
Pump foiling is genuinely hard work, and a stiffer mast makes a real difference to how long you can keep going. The P profile has always been the sensible choice for it, and the Integrated build sharpens that further. We stock it for riders who've committed to pumping and dock starts rather than chasing speed.
FAQs
What is the Sabfoil Integrated System?
It's a construction method where the mast and plate are laminated as one continuous carbon structure rather than bolted together, reducing weight and increasing stiffness and responsiveness at the highest-load point of the foil.
What makes the P version different from the standard Kraken mast?
The P uses a much thicker profile — up to 22.1mm against the standard Kraken's 18.4mm — for maximum stiffness under repeated pumping loads. It trades some top-end speed for that stiffness.
Should I choose the 73P or the 83P?
The 73P suits dock starts, shallow water and prone or surf pumping. The 83P gives more clearance for choppier water, SUP and wing foiling where you want more depth under the board.
Is the Kraken P mast good for wing foiling?
Yes, it works well for wing, surf and SUP foiling as well as pumping, though its thicker section means it isn't the fastest option if speed is your main priority.
What fuselage connection does the Kraken Pump Integrated mast use?
It uses the R8 mast-fuselage connection, so it pairs with Sabfoil's compatible R8 fuselage range.
